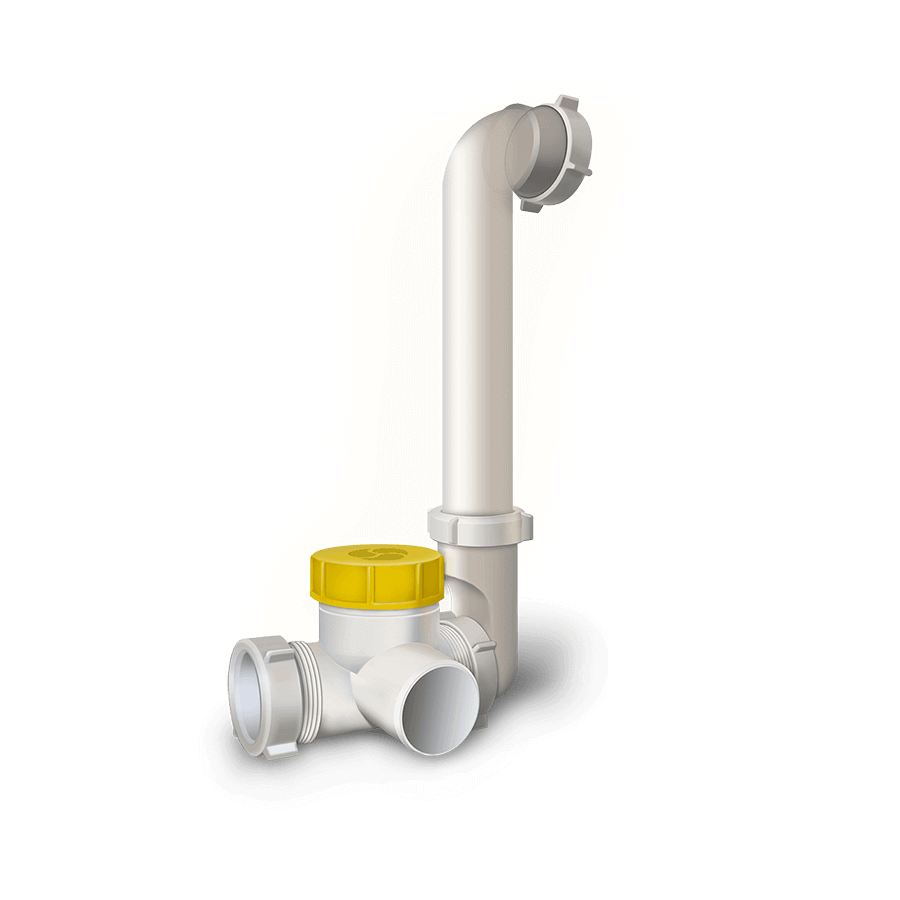

MK SIPHON

Connector is made of polypropylene, which is resistant to corrosion and decay, is used for removing condensate in a low-pressure air-conditioning systems. Maximum pressure is 2200 Pa.

Order Certificates Technical documentation

BALL SIPHON FEATURES

At extremely low pressures, the extension tube or knee can be shortened or tilted (see size table).
The built-in ball valve prevents air from being sucked in when there is no condensate. When connecting, the connector should be moistened with soap and water. Each HVAC condensate drain system must have a separate siphon.

HOW IT WORKS

To learn how the siphon works to remove condensate, please watch the video

Video review 3d rendering

SCHEME

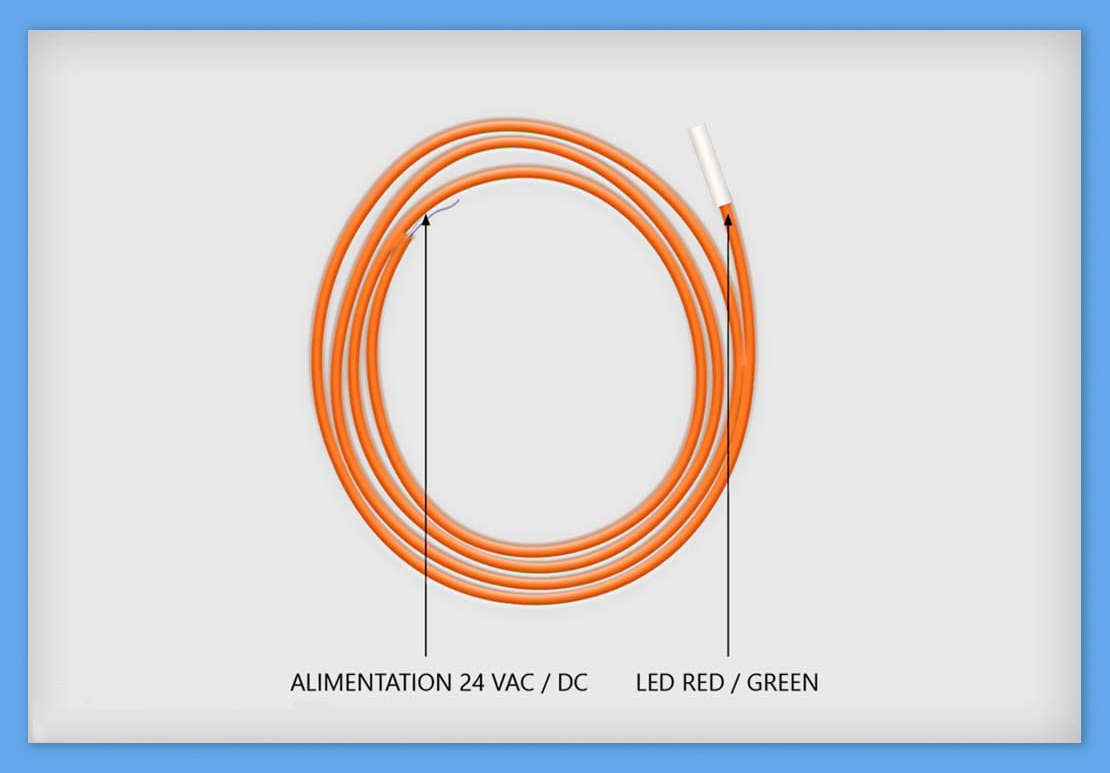

BALL SIPHON HEATER

Use cable 8 mm outside diameter. Connect to 230 Vac mains supply. The heater will fully regulate itself

Assembly heater in ball slot

DATA 5104-7310
Power	230 Vac
Fuse	400 mA max
Tempsensor	10K 25 °C
Heating element	33E/5W

Assembly holes must be used and capped to warrant IP66

ADVANTAGES OF THE BALL SIPHON FOR CONDENSATE DRAIN IN AHU AND HVAC

Very compact size.
If necessary, the valve closes the passage, avoiding the entry of germs and dirty air into the device.
The siphon works in Pa+ conditions or at pressures above 600 Pa.
It is possible to add a 230V or 24V heater if the units are outdoors to avoid freezing.
