BALL SIPHON FOR HVAC SYSTEMS
BALL SIPHON FOR HVAC SYSTEMS

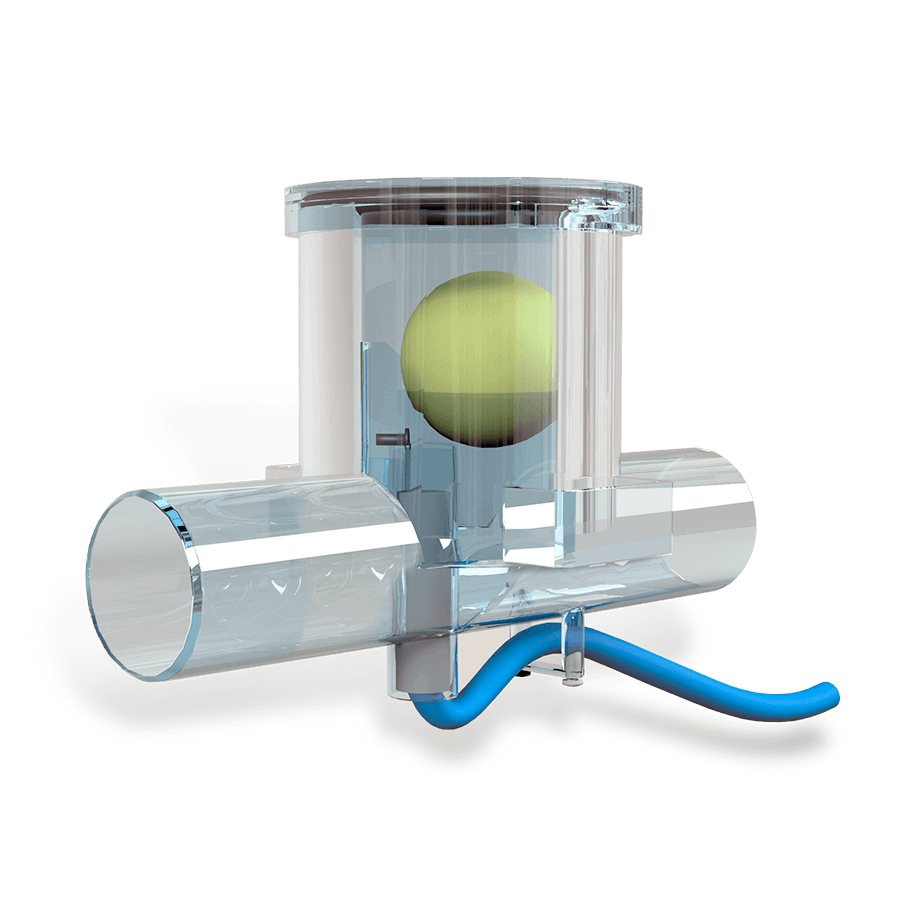

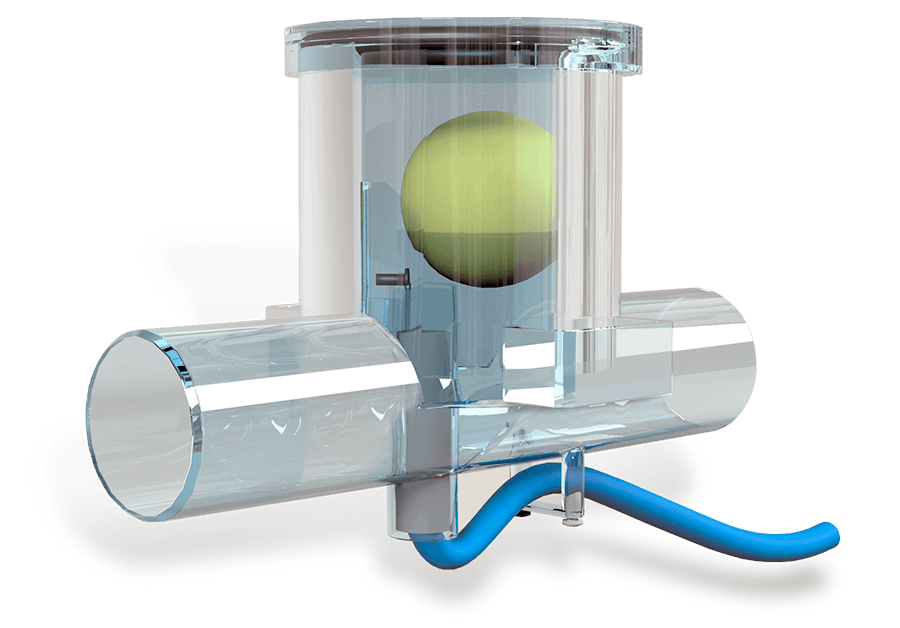

The low-pressure condensate drain for air conditioning systems is made of propylene, resistant to corrosion and decay. The product in standard packaging is designed for a maximum pressure of 600 Pa.
BALL SIPHON FEATURES
- At extremely low pressures, the extension tube or knee can be shortened or tilted (see size table).
- The built-in ball valve prevents air from being sucked in when there is no condensate. When connecting, the connector should be moistened with soap and water. Each HVAC condensate drain system must have a separate siphon.

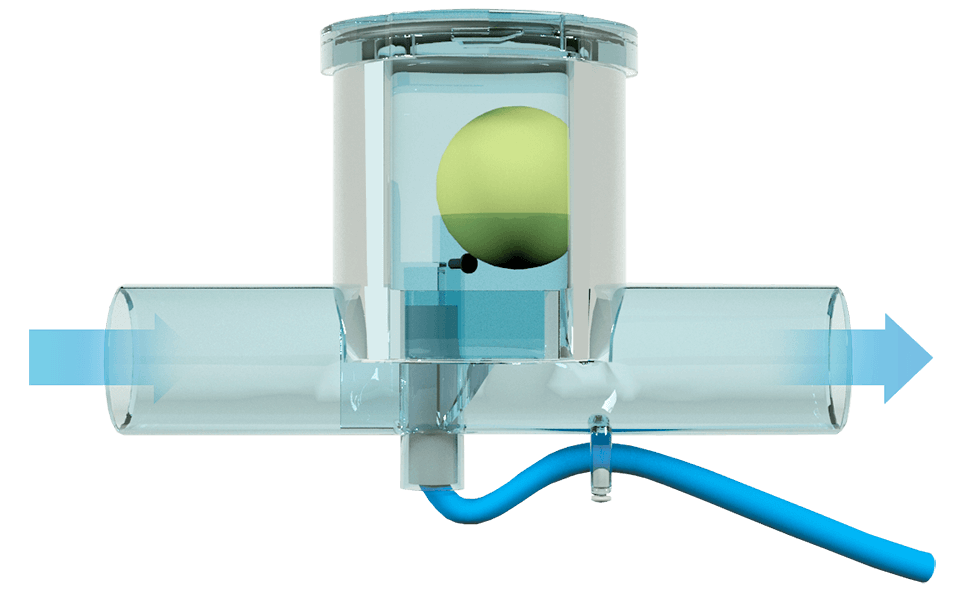

HOW IT WORKS
To learn how the siphon works to remove condensate, please watch the video

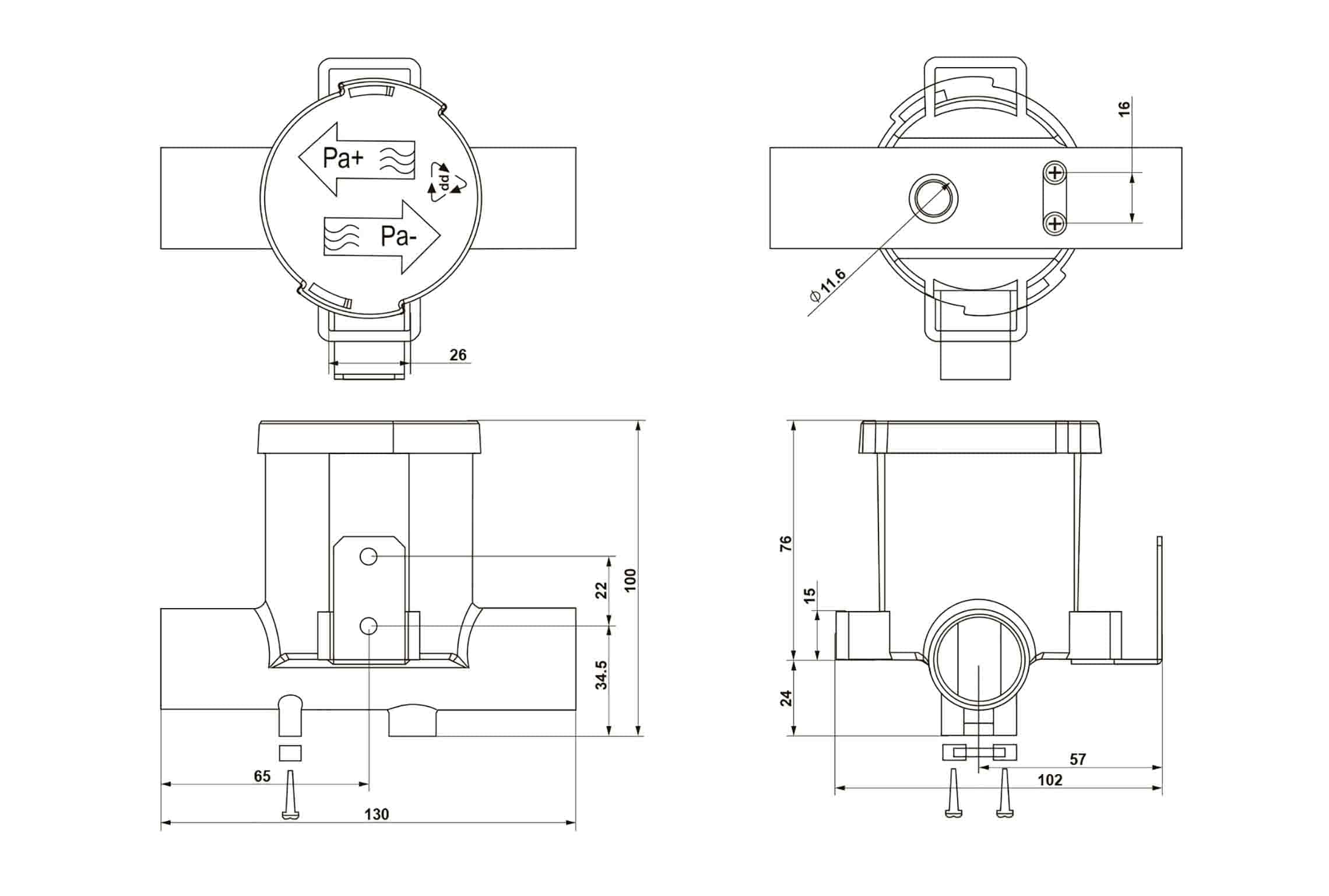

SCHEME

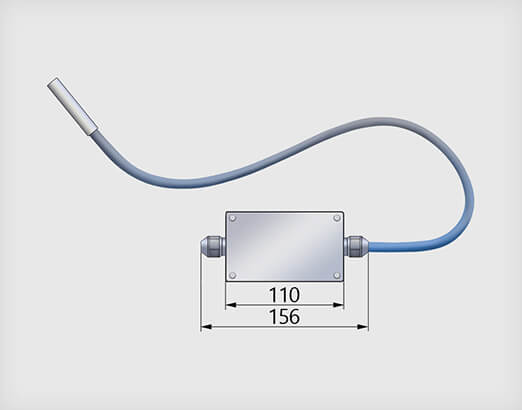

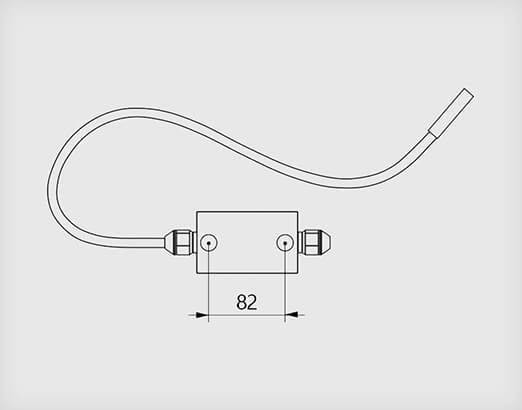

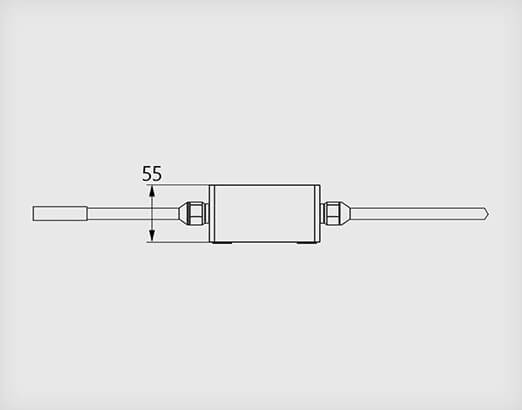

BALL SIPHON HEATER
Use cable 8 mm outside diameter. Connect to 230 Vac mains supply. The heater will fully regulate itself

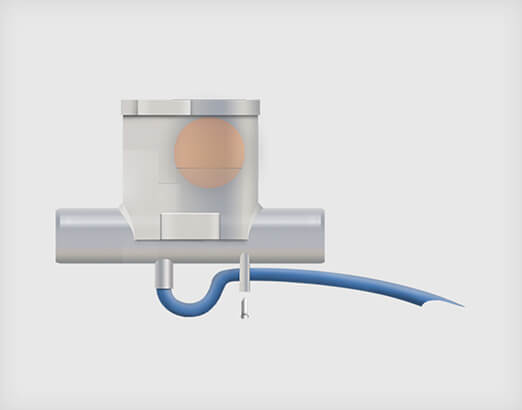

Assembly heater in ball slot
| DATA 5104-7310 | |
|---|---|
| Power | 230 Vac |
| Fuse | 400 mA max |
| Tempsensor | 10K 25 °C |
| Heating element | 33E/5W |
Assembly holes must be used and capped to warrant IP66
ADVANTAGES OF THE BALL SIPHON FOR CONDENSATE DRAIN IN AHU AND HVAC
- Very compact size.
- If necessary, the valve closes the passage, avoiding the entry of germs and dirty air into the device.
- The siphon works in Pa+ conditions or at pressures above 600 Pa.
- It is possible to add a 230V or 24V heater if the units are outdoors to avoid freezing.
TECHNICAL DATA

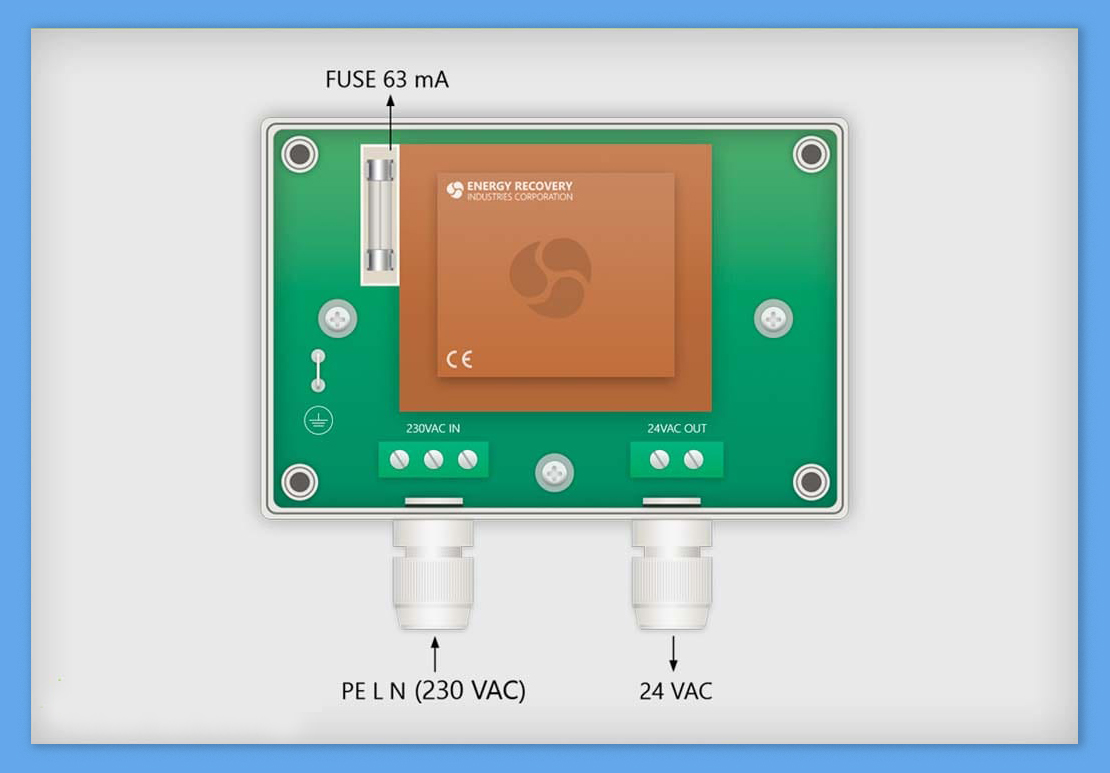

| BIE5080 | |
|---|---|
| Supply voltage | ≈ 230VAC |
| Output voltage | ≈ 20-32VAC |

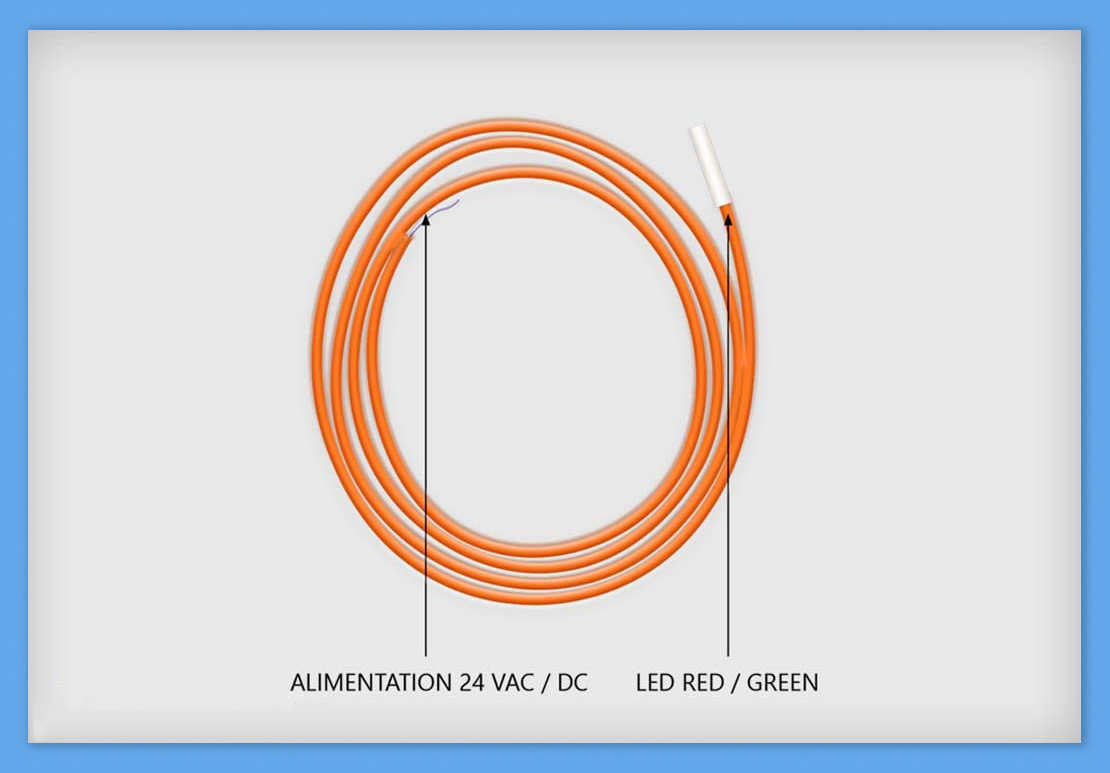

| BIE5070 | |
|---|---|
| Supply voltage | 24VAC/DC |
| Heating resistors | 100 ОМ |
| Switching t° | to 3°С and 7°С |
