ALUMINIUM CROSSFLOW PLATE HEAT EXCHANGER
ALUMINIUM CROSSFLOW PLATE HEAT EXCHANGER

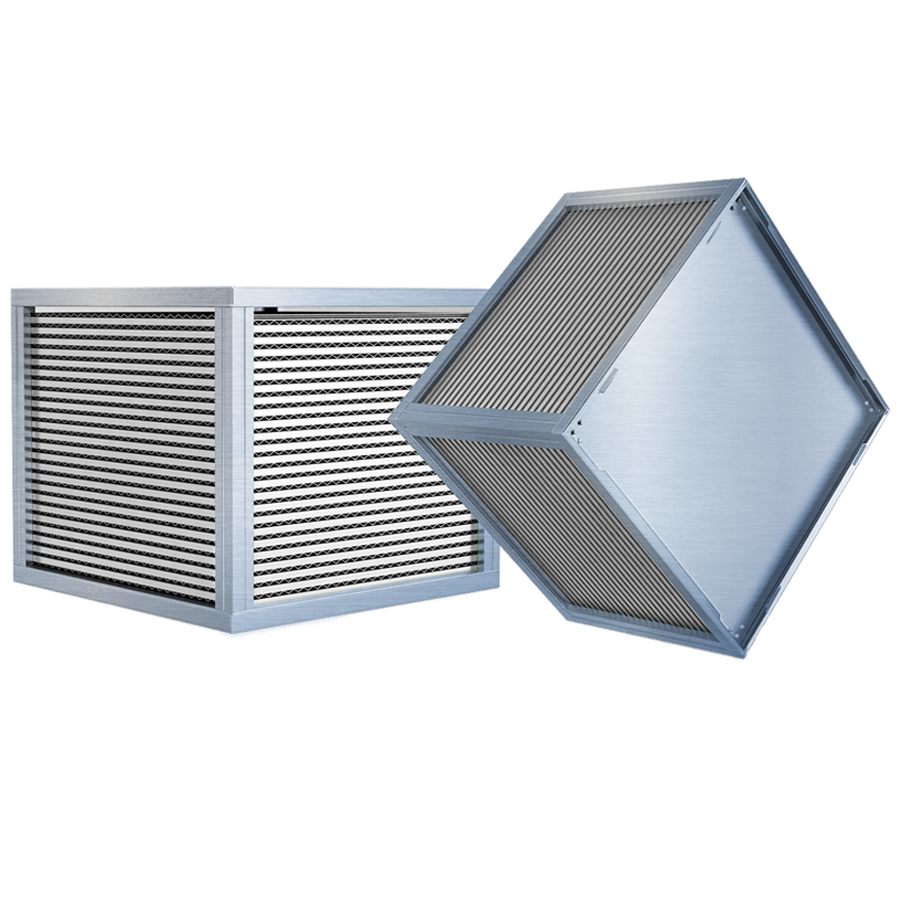

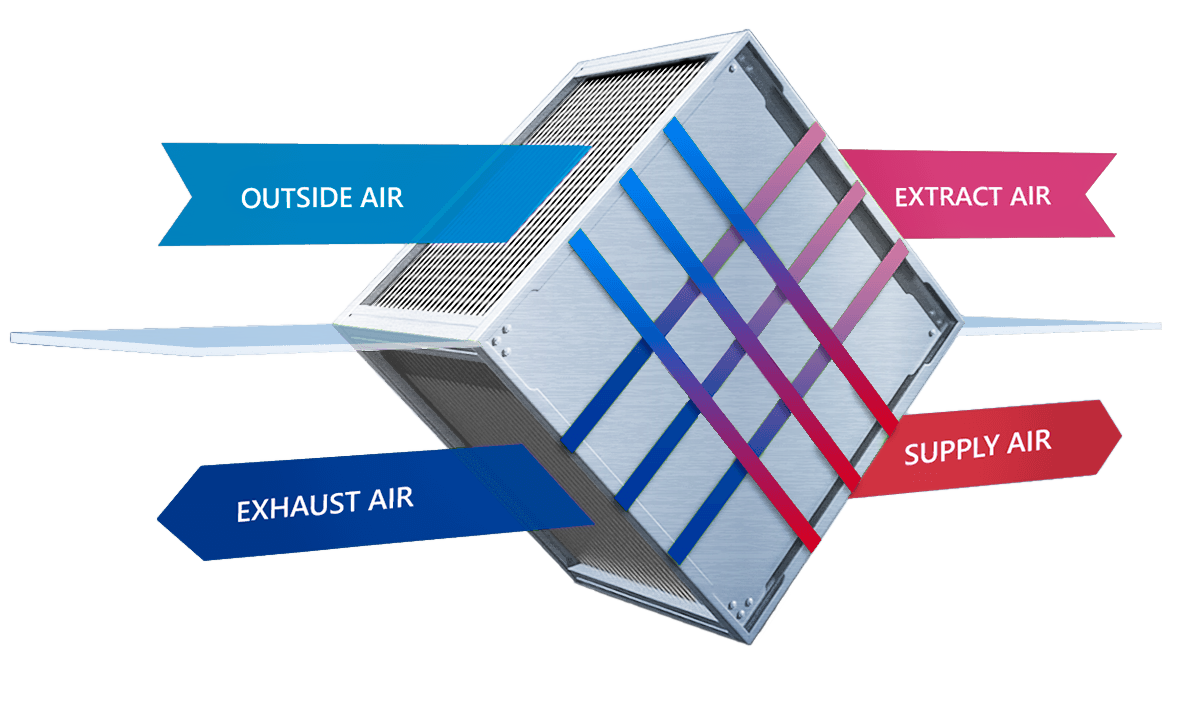

In a crossflow heat exchanger, heat is transferred directly from the exhaust air to the supply air through the separate walls of the heat exchanger.
MAIN ADVANTAGES OF THE CROSSFLOW PLATE HEAT EXCHANGER
- CASING AND PLATES MATERIAL — CORROSION-RESISTANT ALUMINUM
- WITHOUT TRANSMISSION OF ODOR AND MOISTURE
- HIGH EFFICIENCY IN SMALL SIZES
- HIGH STABILITY
- NON-FLAMMABLE
Maximum efficiency
73
HOW IT WORKS
We invite you to view a short video to learn how a crossflow heat exchanger works

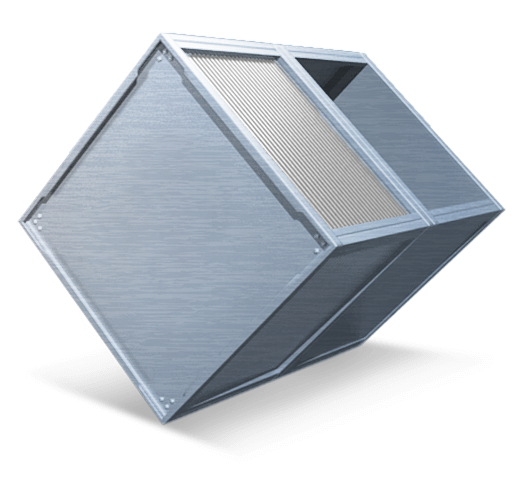

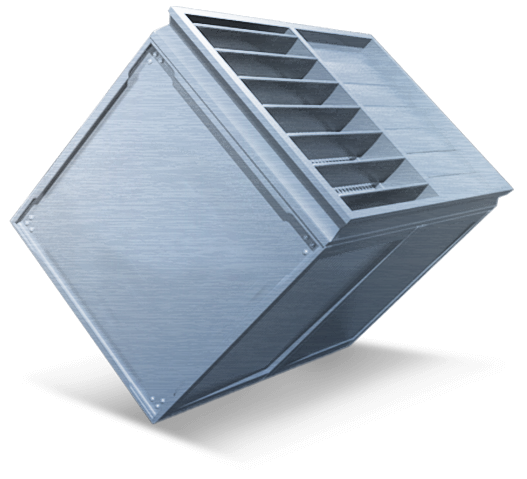

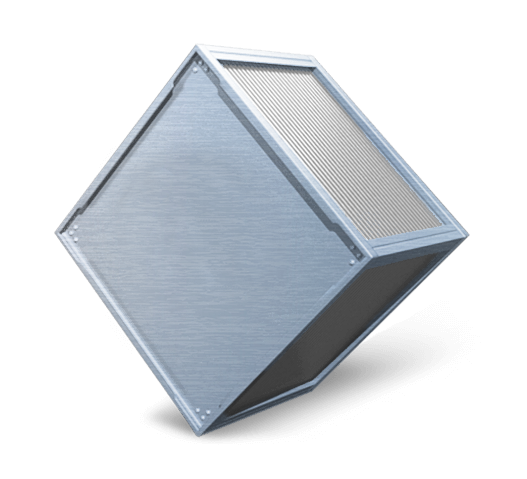

MOUNTING OPTIONS

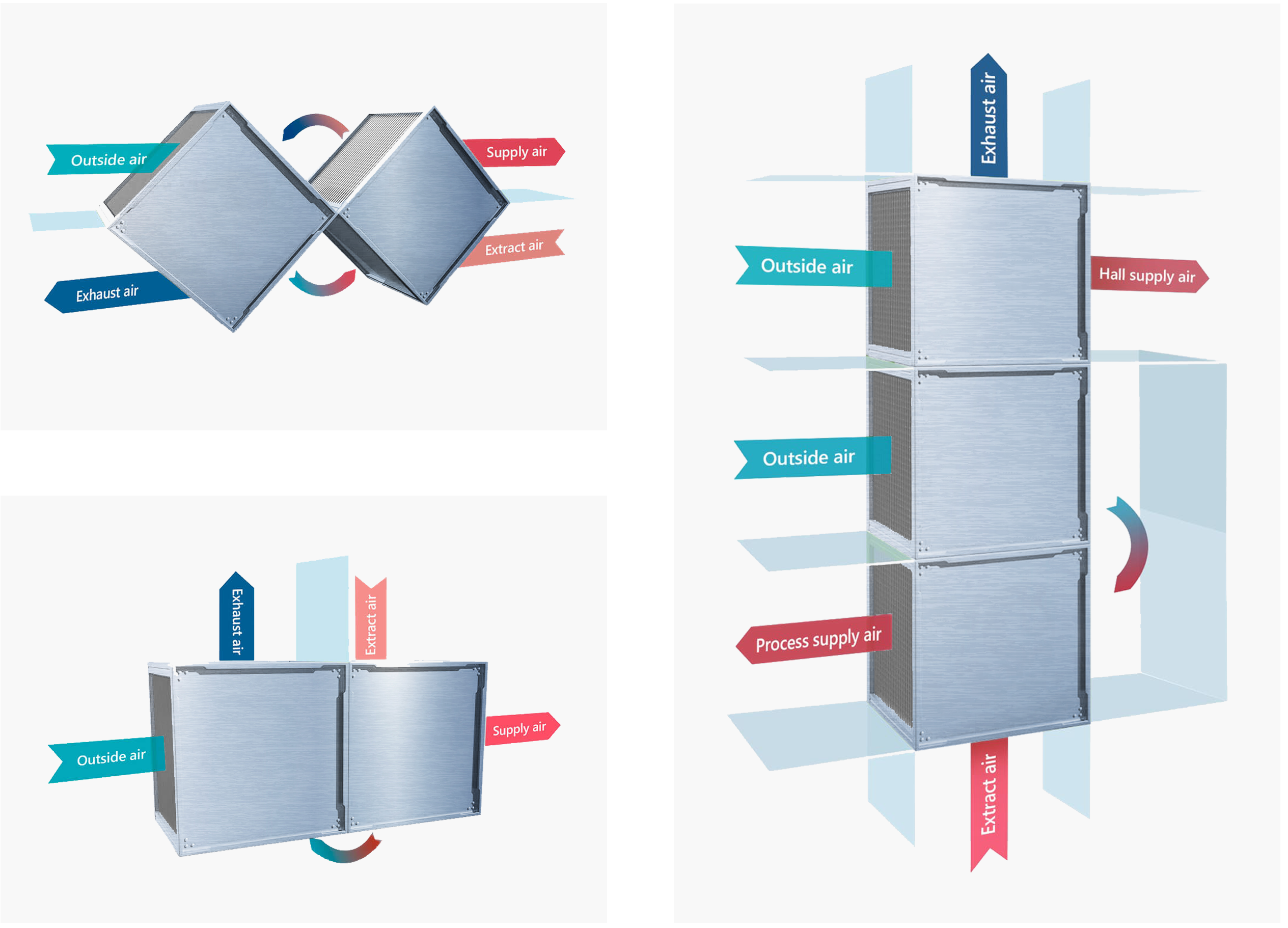

This model can be combined in different configurations to meet specific requirements. Two cross heat exchangers can be connected in a cross-counterflow to improve efficiency.
SIZES ARE PROVIDED HERE
The edge of one heat exchanger block is available in sizes from 200 mm to 1200 mm. The distance between the plates is from 2 mm to 13.5 mm.

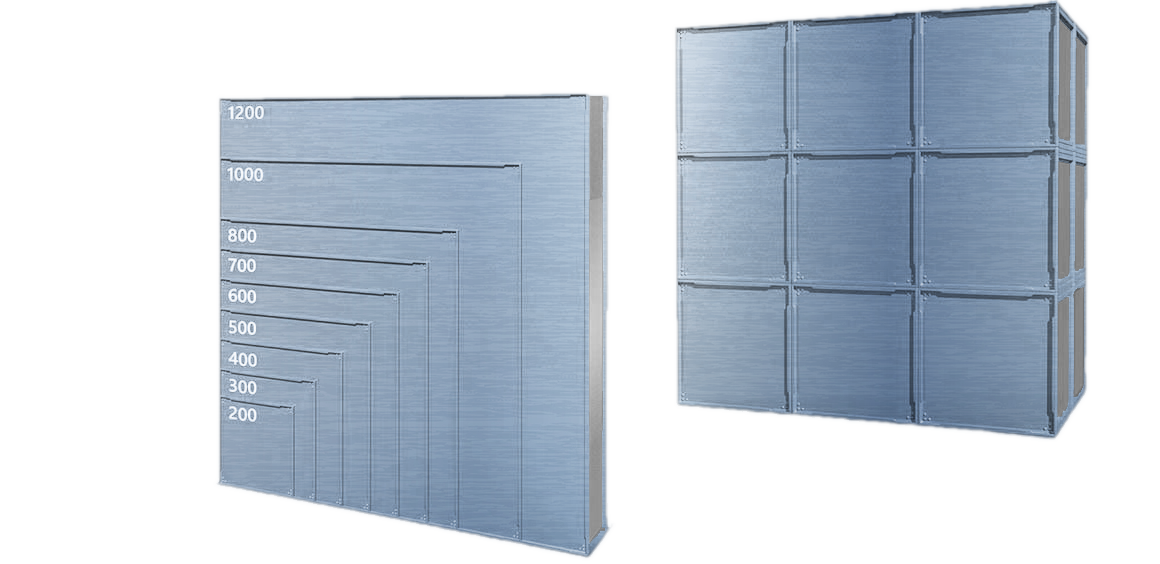

It is possible to manufacture recuperators of any size using a modular assembly from a set of blocks:
- Frame from 200 mm;
- Package width from 200 mm;
- Plate distance from 2,0 mm to 13,5 mm;
- Insulated frame;
- Frame with a channel.

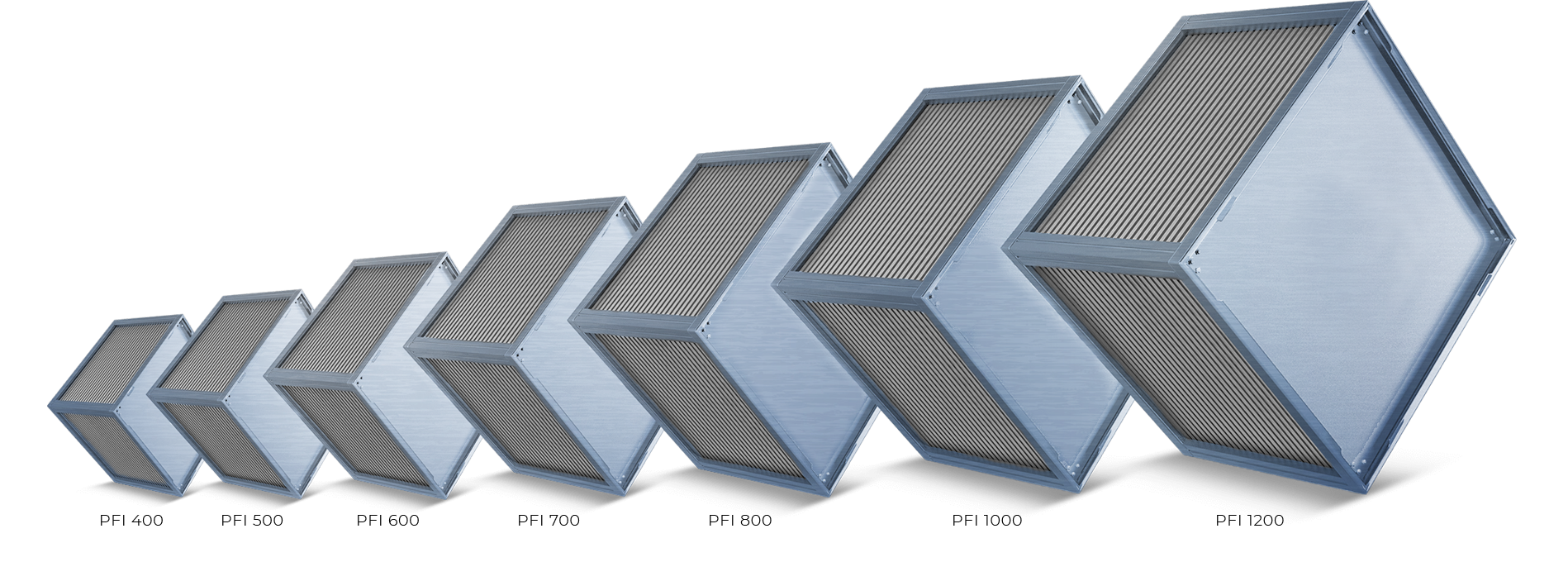

CROSSFLOW HEAT EXCHANGER SIZES
| Type | A, Length, (mm) | B, Height, (mm) | C, Width, (mm) | E, Plates distance, (mm) |
|---|---|---|---|---|
| PFI 200 | 200 | 200 | from 200 |
2.0
3.5
|
| PFI 300 | 300 | 300 | from 200 |
2.0
3.5
5.5
7.5
9.5
13.5
|
| PFI 400 | 400 | 400 | from 200 |
2.0
3.5
5.0
5.5
7.5
9.5
13.5
|
| PFI 500 | 500 | 500 | from 200 |
2.0
3.5
4.5
5.0
5.5
6.5
7.5
9.5
13.5
|
| PFI 600 | 600 | 600 | from 200 |
2.0
3.5
4.5
5.0
5.5
6.5
7.5
9.5
11.5
13.5
|
| PFI 700 | 700 | 700 | from 200 |
2.0
3.5
4.5
5.0
5.5
6.5
7.5
9.5
11.5
13.5
|
| PFI 800 | 800 | 800 | from 200 |
2.0
3.5
4.5
5.0
5.5
6.5
7.5
9.5
11.5
13.5
|
| PFI 900 | 900 | 900 | from 200 |
2.0
3.5
4.5
5.0
5.5
6.5
7.5
9.5
11.5
13.5
|
| PFI 1000 | 1000 | 1000 | from 200 |
2.0
3.5
4.5
5.0
5.5
6.5
7.5
9.5
11.5
13.5
|
| PFI 1200 | 1200 | 1200 | from 200 |
2.0
3.5
4.5
5.0
5.5
6.5
7.5
9.5
11.5
13.5
|
CROSSFLOW SHAPES
PFI 10
PFI 20 B
PFI 25 BD
